短圆柱连接形式。
盘体材质为球墨铸铁
转速较高，夹紧力较大。
卡爪结构形式分为整体和分离爪。
|

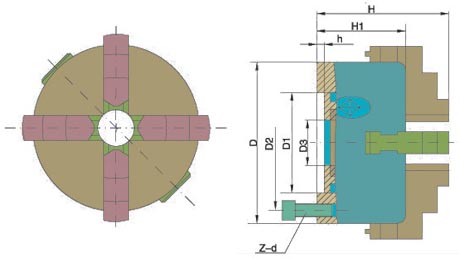

尺寸、性能参数：
| 规格D |
D1 |
D2 |
D3 |
H |
H1 |
h |
z-d |
净重kg |
| K12-80 |
55 |
60 |
16 |
66 |
50 |
3.5 |
4-M16 |
2 |
| K12-100 |
72 |
64 |
22 |
73 |
53.5 |
3.5 |
3-M8 |
3 |
| K12-125 |
95 |
108 |
30 |
84 |
58 |
4 |
3-M8 |
5 |
| K12-130 |
100 |
115 |
30 |
86 |
60 |
3.5 |
3-M8 |
5.6 |
| K12-160 |
130 |
142 |
40 |
95 |
65 |
5 |
3-M8 |
8.8 |
| K12-160A |
130 |
142 |
40 |
109 |
65 |
5 |
3-M8 |
8.3 |
| K12-165 |
130 |
145 |
40 |
96.5 |
66.5 |
4.5 |
3-M8 |
9.8 |
| K12-190 |
155 |
172 |
55 |
105 |
75 |
5 |
3-M10 |
13.8 |
| K12-200 |
165 |
180 |
65 |
109 |
75 |
5 |
3-M10 |
15.5 |
| K12-200C |
165 |
180 |
65 |
122 |
75 |
5 |
3-M10 |
14.1 |
| K12-3200A |
165 |
180 |
65 |
122 |
75 |
5 |
3-M10 |
14.1 |
| K12-240 |
195 |
215 |
70 |
120 |
80 |
8 |
3-M12 |
25 |
| K12-250 |
206 |
226 |
80 |
120 |
80 |
5 |
3-M12 |
26 |
| K12-250C |
206 |
226 |
80 |
130 |
80 |
5 |
3-M12 |
23 |
| K12-250A |
206 |
226 |
80 |
136 |
80 |
5 |
3-M12 |
23 |
| K12-325(325C) |
272 |
296 |
100 |
153.5(154.5) |
96 |
12 |
3-M16 |
50(45) |
| K12-325A |
272 |
296 |
100 |
169.5 |
96 |
12 |
3-M16 |
47 |
| K12-380(380C) |
325 |
350 |
135 |
115.5(156.5) |
98 |
6 |
3-M16 |
66(61) |
| K12-380A |
325 |
350 |
135 |
171.5 |
98 |
6 |
3-M16 |
63) |
| K12-500A |
440 |
465 |
210 |
202 |
115 |
6 |
6-M16 |
119 |
| K12-630 |
560 |
595 |
270 |
218 |
133.5 |
7 |
6-M16 |
210 |
注：K120□/□短锥系列其连接尺寸同K11□/□三爪短锥系列。
|
