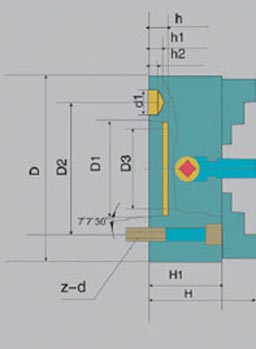

D型:拉杆、凸轮锁紧连接：
| 规格D |
主轴头号 |
D1 |
D2 |
D3 |
H |
H1 |
h |
h1 |
z-d |
净重kg |
| K72-160 |
3 |
53.975 |
70.6 |
45 |
93 |
65 |
13 |
10 |
3-M10×1 |
9 |
| K72-200 |
3 |
53.975 |
70.6 |
51 |
107 |
75 |
-- |
10 |
3-M10×1 |
15 |
| K72-200 |
4 |
63.513 |
82.6 |
56 |
107 |
75 |
13 |
10 |
3-M10×1 |
15 |
| K72-250 |
4 |
63.513 |
82.6 |
61 |
120 |
80 |
-- |
10 |
3-M10×1 |
23 |
| K72-320 350 |
4 |
63.513 |
82.6 |
61 |
134 |
90 |
-- |
10 |
3-M10×1 |
40,53 |
| K72-200 |
5 |
82.563 |
104.8 |
56 |
107 |
75 |
15 |
12 |
6-M12×1 |
15 |
| K72-250 |
5 |
82.563 |
104.8 |
75 |
120 |
80 |
15 |
12 |
6-M12×1 |
23 |
| K72-320 350 |
5 |
82.563 |
104.8 |
79 |
134 |
90 |
-- |
12 |
6-M12×1 |
40,53 |
| K72-400 |
5 |
82.863 |
104.8 |
79 |
143 |
95 |
-- |
12 |
6-M12×1 |
55 |
| K72-250 |
6 |
106.375 |
133.4 |
75 |
120 |
80 |
16 |
13 |
6-M16×1.5 |
23 |
| K72-320 350 |
6 |
106.375 |
133.4 |
95 |
134 |
90 |
16 |
13 |
6-M16×1.5 |
40,53 |
| K72-400 |
6 |
106.375 |
133.4 |
95 |
145 |
95 |
16 |
13 |
6-M16×1.5 |
55 |
| K72-500 |
6 |
106.375 |
133.4 |
103 |
161 |
106 |
-- |
13 |
6-M16×1.5 |
1020 |
| K72-320 350 |
8 |
139.719 |
171.4 |
95 |
134 |
90 |
18 |
14 |
6-M20×1.5 |
40,53 |
| K72-400 |
8 |
139.719 |
171.4 |
125 |
143 |
95 |
18 |
14 |
6-M20×1.5 |
55 |
| K72-500 |
8 |
139.719 |
171.4 |
136 |
161 |
106 |
-- |
14 |
6-M20×1.5 |
106 |
| K72-400 |
11 |
196.869 |
235.0 |
125 |
143 |
95 |
20 |
16 |
6-M22×1.5 |
68 |
| K72-500 |
11 |
196.869 |
235.0 |
160 |
161 |
106 |
20 |
16 |
6-M22×1.5 |
102 |
| K72-630 |
11 |
196.869 |
235.0 |
180 |
180 |
118 |
20 |
16 |
6-M22×1.5 |
169 |
| K72-500 |
15 |
285.775 |
330.2 |
160 |
161 |
106 |
21 |
17 |
6-M24×1.5 |
106 |
| K72-630 |
15 |
285.775 |
330.2 |
180 |
180 |
118 |
21 |
17 |
6-M24×1.5 |
159 |
注：根据用户需求，不可以提供配带分离爪（滑座和顶爪连接尺寸符合ISO3424）的四爪单动卡盘，型号为K72□A/□。
|
