Dimensions：
| Dimensions/Model |
A |
B |
C(H6) |
D |
E |
F |
G |
H |
J |
K |
Lmax |
Lmin |
Mmax |
Mmin |
Nmax |
Nmin |
| HW-08 |
210 |
91 |
170 |
5 |
- |
133.4 |
4-M12 |
20 |
31 |
|
10.5 |
22 |
39 |
22 |
50.3 |
43.7 |
| HW-10 |
270 |
110 |
120 |
5.5 |
200 |
170 |
4-M16 |
24 |
40 |
|
18 |
49 |
49 |
27 |
64 |
56 |
| HW-12 |
304 |
110 |
120 |
5.5 |
200 |
170 |
4-M16 |
24 |
40 |
|
18 |
49 |
49 |
27 |
64 |
56 |
| HW-15 |
381 |
135 |
195 |
7.5 |
285 |
235 |
4-M20 |
30 |
50 |
|
26 |
59.5 |
859.5 |
34.5 |
78 |
69.5 |
| Dimensions/Model |
Omax |
Omin |
P |
Q |
R |
S |
T |
U |
V |
W |
X |
Y |
Z |
a |
b |
c |
| HW-08 |
28.75 |
925 |
17.5 |
17 |
82 |
46 |
34 |
90 |
M14×2.0 |
M34×1.5 |
39 |
20 |
2 |
12 |
16 |
1.5 |
| HW-10 |
28 |
13 |
20 |
20 |
103 |
58 |
42 |
110 |
M16×2.0 |
M42×1.5 |
45 |
30 |
5 |
16 |
- |
3.0 |
| HW-12 |
304 |
13 |
20 |
20 |
103 |
58 |
42 |
110 |
M16×2.0 |
M42×1.5 |
45 |
30 |
5 |
16 |
- |
3.0 |
| HW-15 |
381 |
125 |
24 |
18.5 |
130 |
78 |
42 |
129 |
M20×2.5 |
M55×2.0 |
53 |
38 |
5 |
38 |
- |
3.0 |
Specifications：
| Specifications/Model |
Jaw Stroke （diameter） |
Plunger Stroke mm |
Gripping range mm |
Max.Draw Bar Pull Force kn(kgf) |
Max.Gripping Force KN(kgf) |
Max.Speed min(r.p.m) |
| max. |
min. |
| HW-08 |
13.2 |
17 |
210 26 |
16.5(1683) |
56(5710) |
3000 |
| HW-10 |
16 |
22 |
270 54 |
23(2345) |
84(8565) |
2000 |
| HW-12 |
16 |
22 |
304 54 |
23(2345) |
84(8565) |
1500 |
| HW-15 |
17 |
25 |
381 63 |
28(2855) |
108(11013) |
1200 |
| Specifications/Model |
Net Weight With Soft top jaws kg |
Moment of inertia kg |
Matching Cylinder |
Max.pressure mpa(kgf) |
Matching Soft top jaw |
| HW-08 |
23 |
0.153 |
YW1220R |
1.71(17.4) |
SB08B1Q |
| HW-10 |
50 |
0.500 |
YW1225R |
2.29(23.4) |
SB10A2Q |
| HW-12 |
58 |
0.700 |
YW1225R |
2.29(23.4) |
SB10A2Q |
| HW-15 |
118 |
2.250 |
YW1225R |
2.73(27.8) |
SB15A2Q |

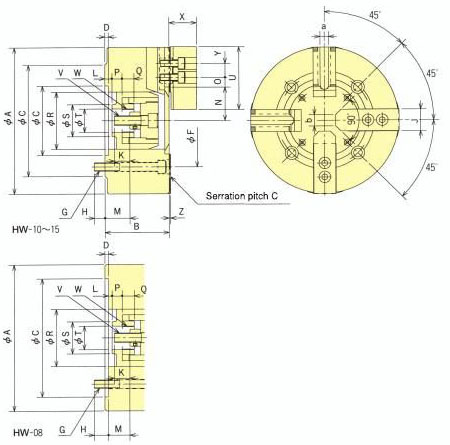

Dimensional Drawings：
|
