Dimensions：
| Dimensions/Model |
A |
B |
C(h6) |
D |
E max |
E min |
F |
| KPC803C100 |
80 |
70 |
60 |
20.6 |
17 |
9.9 |
55 |
| KPC43C048 |
100 |
88.9 |
82.55 |
20.6 |
18.8 |
15.3 |
50.5 |
| KPC43C100 |
100 |
88.9 |
82.55 |
20.6 |
18 |
10.8 |
55 |
| KPC63C100 |
150 |
135.8 |
124.97 |
20.6 |
17.6 |
10.4 |
56 |
| Dimensions/Model |
G |
H |
J |
Jaw Mounting bolts |
Mounting bolts |
Weight (with soft top jaw) |
| KPC803C100 |
20 |
19 |
2 |
3×1-M5×16 |
3-M5×60 |
1.8 |
| KPC43C048 |
20 |
19 |
2 |
3×2-M5×16 |
6-M5×55 |
2.1 |
| KPC43C100 |
20 |
19 |
2 |
3×2-M5×16 |
6-M5×60 |
2.1 |
| KPC63C100 |
25 |
19 |
2 |
3×4-M5×16 |
6-M6×65 |
6.3 |
Specifications：
| Dimensions/Model |
Repeatability mm |
Number of jaws |
Jaw stroke |
Range |
Max.Gripping Force |
Max.speed(with std.Aluminum jaw) |
| Outer grpping mm |
Inner gripping mm |
| KPC803C100P |
0.0025 |
3 |
2.5 |
3~70 6~79 |
4.3（438） |
6000 |
| KPC803C100EP |
0.0013 |
3 |
2.5 |
3~70 6~79 |
4.3（438） |
6000 |
| KPC803C100EP1 |
0.0010 |
3 |
2.5 |
3~70 6~79 |
4.3（438） |
6000 |
| KPC803C048P |
0.0025 |
3 |
1.2 |
3.5~87 6~99 |
7.6（775） |
6000 |
| KPC43C048EP |
0.0013 |
3 |
1.2 |
3.5~87 6~99 |
7.6（775） |
6000 |
| KPC43C048EP |
0.0010 |
3 |
1.2 |
3.5~87 6~99 |
7.6（775） |
6000 |
| KPC43C100P |
0.0025 |
3 |
2.5 |
3~87 6~99 |
7.6（775） |
6000 |
| KPC43C100EP |
0.0013 |
3 |
2.5 |
3~87 6~99 |
7.6（775） |
6000 |
| KPC43C100EP1 |
0.0010 |
3 |
2.5 |
3~87 6~99 |
7.6（775） |
6000 |
| KPC63C100P |
0.0025 |
3 |
2.5 |
3~135 6~149 |
11.6（1183） |
4000 |
| KPC63C100EP |
0.0013 |
3 |
2.5 |
3~135 6~149 |
11.6（1183） |
4000 |
| KPC63C100EP1 |
0.0010 |
3 |
2.5 |
3~135 6~149 |
11.6（1183） |
4000 |

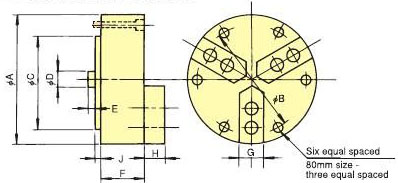

Dimensional Drawings：
|
