Dimensions：
| Dimensions/Model |
A |
B |
C |
F |
H |
K |
L |
M |
N max |
N min |
O max |
O min |
| NL06A05 |
160 |
84 |
140 |
5 |
104.8 |
6-M10 |
14 |
20 |
40.5 |
34 |
13.75 |
9.25 |
| NL08A06 |
210 |
97 |
170 |
5 |
133.4 |
6-M12 |
18 |
25 |
48.1 |
40 |
20.75 |
11.75 |
| NL10A06 |
254 |
104 |
220 |
5 |
133.4 |
6-M16 |
18 |
30 |
54.4 |
45.35 |
29.5 |
11.5 |
| NL10A08 |
254 |
102 |
220 |
5 |
171.4 |
6-M16 |
25 |
30 |
54.4 |
45.35 |
29.5 |
11.5 |
| NL12A06 |
304 |
120 |
220 |
6 |
133.4 |
6-M16 |
18 |
30 |
65.7 |
56 |
12.75 |
12.75 |
| NL12A08 |
304 |
118 |
220 |
6 |
171.4 |
6-M16 |
25 |
30 |
65.7 |
56 |
12.75 |
1 |
| |
P min |
Q |
R |
S |
T |
U |
V |
W |
X |
Y |
Z |
A1 |
A2 |
| Dimensions/Model |
66.5 |
31 |
12 |
36 |
M16 |
4 |
34 |
35 |
72 |
3-M6 |
116 |
15 |
82.563 |
| NL06A05 |
89 |
35 |
14 |
36 |
M20 |
5 |
38 |
42 |
95 |
3-M6 |
150 |
17 |
106.375 |
| NL08A06 |
113 |
40 |
16 |
36 |
M20 |
5 |
45 |
46 |
110 |
6-M12 |
171.4 |
20 |
106.375 |
| NL10A06 |
115 |
40 |
16 |
36 |
M20 |
5 |
45 |
46 |
110 |
3-M8 |
190 |
18 |
139.719 |
| NL10A08 |
-27 |
50 |
18 |
46 |
M24 |
5 |
50 |
54 |
129 |
6-M12 |
171.4 |
20 |
106.375 |
| NL12A08 |
-29 |
50 |
18 |
46 |
M24 |
5 |
50 |
54 |
129 |
3-M8 |
190 |
18 |
139.719 |
Specifications：
| Specifications/Model |
Gripping range mm |
Jaw Stroke （diameter） |
Plunger Stroke mm |
Max.Draw Bar Pull Force kn(kgf) |
Max.Gripping Force KN(kgf) |
Max.Speed min(r.p.m) |
| max. |
min. |
| NL06A05 |
165 22 |
13 |
20 |
21.0(3977) |
39.0(3977) |
4300 |
| NL08A06 |
210 23 |
16.2 |
25 |
60.0(6188) |
60.0(6118) |
3600 |
| NL10A06 |
254 27 |
18.1 |
28 |
81.0(8260) |
|
3100 |
| NL10A08 |
254 27 |
18.1 |
28 |
81.0(8260) |
|
3100 |
| NL12A06 |
304 33 |
19.4 |
30 |
111.0(11319) |
|
2500 |
| NL12A08 |
304 33 |
19.4 |
30 |
111.0(11319) |
|
2500 |
| Specifications/Model |
Net Weight With Soft top jaws kg |
Moment of inertia kg |
Matching Cylinder |
Max.pressure mpa(kgf) |
Matching Hard top jaw |
Matching Soft top jaw |
| NL06A05 |
12.5 |
0.048 |
Y1020R |
3.00(30.6) |
HB06B1 |
SB06B1 |
| NL08A06 |
24.5 |
0.148 |
Y1225R |
2.90(29.6) |
HB08A1 |
SB08B1 |
| NL10A06 |
40.0 |
0.335 |
Y1530R |
2.80(28.6) |
HB10A1 |
SB10A1 |
| NL10A08 |
37.6 |
0.326 |
Y1530R |
2.80(28.6) |
HB10A1 |
SB10A1 |
| NL12A06 |
64.6 |
0.759 |
Y1530R |
3.60(36.7) |
HB12B1 |
SB12A1 |
| NL12A08 |
63.0 |
0.750 |
Y1530R |
3.60(36.7) |
HB12B1 |
SB12A1 |

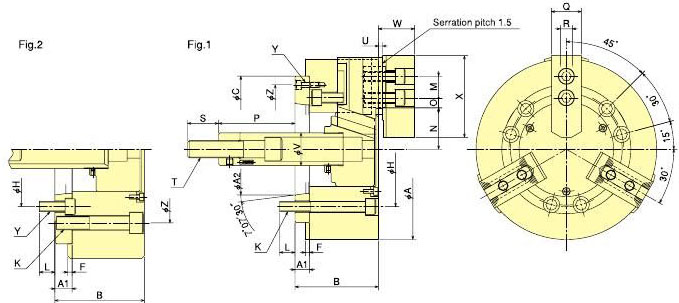

Dimensional Drawings：
|
