Dimensions：
| Dimensions/Model |
C |
D |
E |
F |
G |
H |
J Thru-hole |
K |
M |
| S1246 |
155 |
130 |
100 |
80 |
65 |
M 55×2.0 |
46 |
36 |
52.9 |
| S1552 |
190 |
170 |
130 |
85 |
70 |
M 60×2.0 |
52 |
36 |
59.6 |
| S1875 |
215 |
190 |
160 |
120 |
95 |
M 85×2.0 |
75 |
36 |
84.6 |
| S2091 |
240 |
215 |
180 |
140 |
110 |
M 100×2.0 |
91 |
34 |
99.6 |
| Dimensions/Model |
P |
Q |
S |
T |
U |
Vmax |
Vmin |
Wmax |
Wmin |
Z |
A1 |
| S1246 |
85 |
51.5 |
118 |
115 |
179 |
15 |
0 |
40 |
25 |
5 |
11.5 |
| S1552 |
96 |
57.5 |
137 |
130 |
191 |
22 |
0 |
47 |
25 |
5 |
12 |
| S1875 |
121 |
70.5 |
166 |
160 |
225 |
25 |
0 |
50 |
25 |
5 |
17.5 |
| S2091 |
138 |
79 |
182 |
185 |
248 |
30 |
0 |
55 |
25 |
5 |
21 |
| Dimensions/Model |
B1 |
C1 |
E1depth |
F1depth |
G1 |
H1 |
J1 |
K1 |
L1 |
M1 |
| S1246 |
126.5 |
30 |
M6×9 |
M10×20 |
135 |
98 |
76 |
47 |
15 |
50 |
| S1552 |
136 |
30 |
M6×9 |
M10×20 |
145 |
110 |
86 |
47 |
15 |
55 |
| S1875 |
153.5 |
35 |
M6×9 |
M10×20 |
166.5 |
155 |
101 |
47 |
15 |
80 |
| S2091 |
168 |
35 |
M6×14 |
M12×24 |
183 |
165 |
110 |
47 |
15 |
95 |
| Dimensions/Model |
N1 |
P1 |
Q1depth |
R1 |
S1 |
T1 |
U1 |
V1 |
W1 |
X1 |
| S1246 |
76 |
4 |
M5×10 |
6 |
RC1/2 |
6 |
200 |
46 |
M52×1.5 |
50 |
| S1552 |
85 |
4 |
M6×12 |
7 |
RC1/2 |
6 |
220 |
51 |
M58×1.5 |
56 |
| S1875 |
108 |
4 |
M6×12 |
7 |
RC1/2 |
6 |
242 |
58 |
M84×2.0 |
81 |
| S2091 |
120 |
4 |
M6×12 |
7 |
RC1/2 |
6 |
267 |
66 |
M99×2.0 |
96 |
Specifications：
| Specifications/Model |
Piston Dia.mm |
Piston stroke mm |
Piston Area |
Draw bar |
| Push Side |
Pull side |
Push Side |
Pull side |
| S1246 |
125 |
15 |
100 |
89 |
38(3875) |
33(3365) |
| S1552 |
155 |
22 |
161 |
150 |
60(6118) |
56(5710) |
| S1875 |
180 |
25 |
198 |
183 |
74(7546) |
69(7036) |
| S2091 |
205 |
30 |
252 |
234 |
94(9585) |
88(8973) |
| Specifications/Model |
max.Operation Pressure mpa |
Max.Speed min(r.p.m) |
Moment of inertia kg |
Net Weight kg |
Total leakage |
| S1246 |
4(40.8) |
7000 |
0.019 |
12.0 |
3.0 |
| S1552 |
4(40.8) |
6200 |
0.053 |
16.8 |
3.9 |
| S1875 |
4(40.8) |
4700 |
0.095 |
26.0 |
4.2 |
| S2091 |
4(40.8) |
3800 |
0.153 |
33.0 |
4.5 |

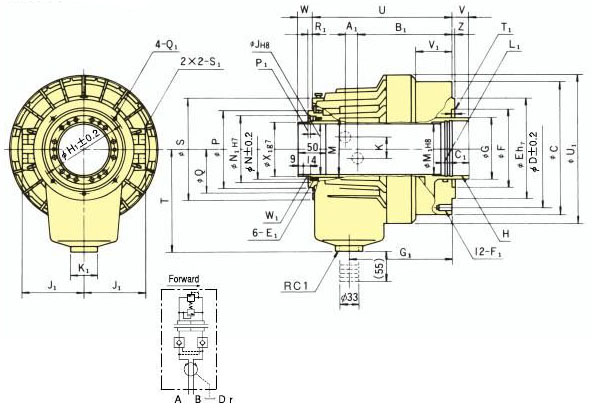

Dimensional Drawings：
|
