1、油压夹头用生爪。
2、CNC车床用生爪。
|

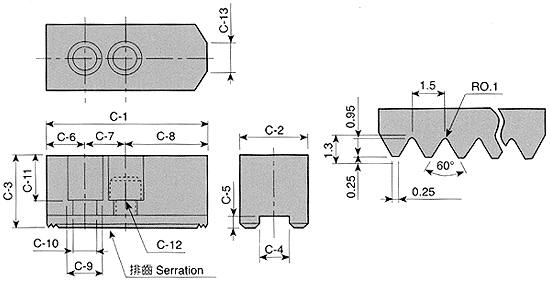

型号说明：
| 型式\尺寸 |
C-1 |
C-2 |
C-3 |
C-4 |
C-5 |
C-6 |
C-7 |
C-8 |
C-9 |
C-10 |
C-11 |
C-12 |
C-13 |
锯齿状节距 |
适合夹头 |
三爪重量kg |
| HC04 |
53 |
23 |
23 |
10 |
5 |
9 |
14 |
30 |
13.5 |
9 |
14 |
M8 |
3 |
1.5X60° |
N-204 |
0.45 |
| HC05 |
62 |
25 |
30 |
10 |
5 |
9 |
14 |
39 |
13.5 |
9 |
21 |
M8 |
5 |
1.5X60° |
N-205 |
0.7 |
| HC06 |
73 |
31 |
36 |
12 |
5 |
15 |
20 |
38 |
17 |
11 |
23 |
M10 |
14 |
1.5X60° |
N-206.V-206 |
1.5 |
| HC08 |
95 |
35 |
37 |
14 |
5 |
24 |
25 |
46 |
19 |
13 |
22 |
M12 |
16 |
1.5X60° |
N-208.V-208 |
2.4 |
| HC10 |
110 |
40 |
42 |
16 |
5 |
30 |
30 |
50 |
19 |
13 |
27 |
M12 |
18 |
1.5X60° |
N-210.V-210 |
3.7 |
| HC12 |
130 |
50 |
50 |
21 |
5 |
39 |
30 |
61 |
25 |
17 |
30 |
M16 |
23 |
1.5X60° |
N-212 |
6.2 |
| HC15 |
165 |
62 |
62 |
22 |
8 |
37 |
43 |
85 |
32 |
21 |
38 |
M20 |
- |
1.5X60° |
N-215 |
12.8 |
| HC12-1 |
130 |
50 |
50 |
18 |
5 |
39 |
30 |
61 |
23 |
15 |
30 |
M20 |
23 |
1.5X60° |
V-212 |
6.25 |
| HJ15-1 |
165 |
62 |
62 |
25.5 |
5 |
37 |
43 |
85 |
32 |
21 |
38 |
M20 |
- |
1.5X60° |
V-215.V-218 |
7.5 |
| HJ24-1 |
180 |
65 |
70 |
25 |
9 |
40 |
60 |
80 |
32 |
21 |
45 |
M20 |
- |
3.0X60° |
V-221.V-224 |
16 |
|
