注：近接开关是选购品
| 形式/规格 |
TLX-12G-N-02E(KIPS) |
| 电压 |
DC 10/30V |
| 负荷容量 |
200 mA |
| 输出规格 |
NPN |
|
端子连接：
| 形式/符号 |
TLX-12G-N-02E(KIPS) |
| OP2 |
黑 BLACK |
| +V |
棕 BROWN |
| OV |
蓝 BLUE |
| OP1 |
黑 BLACK |

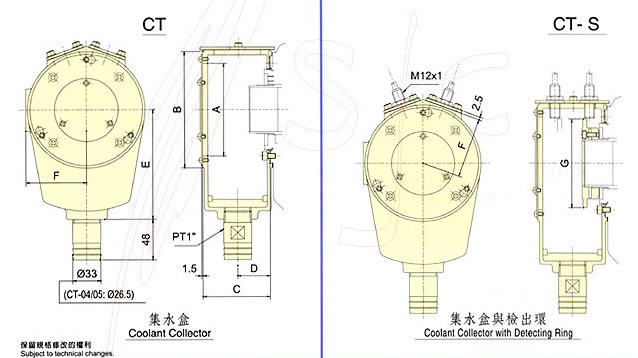

尺寸图：
| 寸法/型号 |
A |
B |
C |
D |
E |
F |
G |
重量kg |
适用油压缸 |
| CT-05 |
100 |
125 |
74 |
36 |
120 |
64.5 |
87 |
1.2 |
TH-536 |
| CT-05S |
100 |
125 |
74 |
36 |
120 |
64.5 |
87 |
1.5 |
TH-536 |
| CT-06 |
100 |
125 |
74 |
36 |
120 |
64.5 |
94 |
1.2 |
TH-646 TK642 TK646 |
| CT-06S |
100 |
125 |
74 |
36 |
120 |
64.5 |
94 |
1.6 |
TH-646 TK642 TK646 |
| CT-08 |
110 |
138 |
80 |
39 |
130 |
71 |
105 |
1.3 |
TH-846,TH-852 TK846 TK852 |
| CT-08S |
110 |
138 |
80 |
39 |
130 |
71 |
105 |
1.8 |
TH-846,TH-852 TK846 TK852 |
| CT-10 |
158 |
185 |
88 |
43 |
160 |
94.5 |
145 |
1.9 |
TH-1068,TH-1075 TK1068,TK1075,TK1078 |
| CT-10S |
158 |
185 |
88 |
43 |
160 |
94.5 |
145 |
2.6 |
TH-1068,TH-1075 TK1068,TK1075,TK1078 |
| CT-12 |
158 |
185 |
88 |
43 |
160 |
94.5 |
145 |
1.9 |
TH-1291 |
| CT-12S |
158 |
185 |
88 |
43 |
160 |
94.5 |
145 |
2.6 |
TH-1291 |
| CT-15 |
210 |
230 |
118 |
60 |
210 |
121 |
196 |
4.3 |
TH-1512 |
| CT-15S |
210 |
230 |
118 |
60 |
210 |
121 |
196 |
6.1 |
TH-1512 |
|
